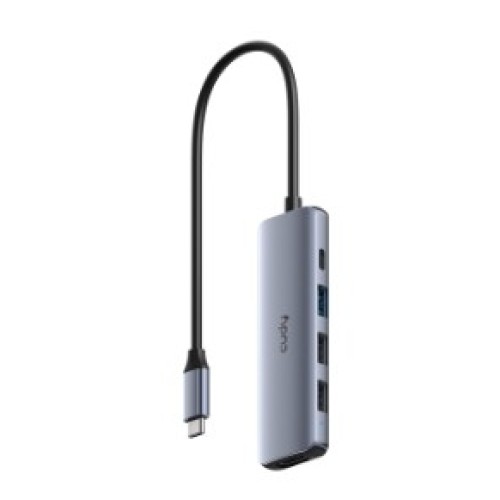

Concentrador USB-C 4K HDMI 5 en 1

UH405 1.0

Dongle USB-C Plug-and-Play para ampliar un USB-C a HDMI y tres puertos USB-A, ideal para empresarios, profesores y estudiantes.

1×HDMI 1.4, 4K 30 Hz, 2K 60 Hz

1 × 5 Gbps PD USB-C macho

1× USB-A 3.2 Gen 1 de 5 Gbps

2 × USB-A 2.0

1× USB-C que recibe 100W PD

51 gramos (1,8 onzas)

103×32×11 mm (4,06×1,26×0,43")

PC/Mac/iPad/iPhone/Android/Nintendo

Versión del modelo UH405 1.0

Interfaces Upstream Connection 1× USB-C 3.2 Gen 1 Male Connector (5 Gbps)

Video Output 1× HDMI 1.4

Video Output Resolutions

4K (4096×2160) 30 Hz

2K (2560×1440) 60 Hz

1080P (1920×1080) 120 Hz

Video Output Modes Extend, Mirror

Android phone supports mirror mode only

USB Ports

1× USB-A 3.2 Gen 1 Port (5 Gbps)

2× USB-A 2.0 Ports

Power Input USB-C Port

LED Power

Power Power Methods DC / PD

DC 5~20V 0~5A

Max Power Consumption (W) 100W if powered by a PD Adapter

5W if powered by the host client's USB Power

Idle Power Consumption (W) 0.2W

Physical Color Silver Gray Color

Casing

Aluminum

ABS

Requirements Hardware Requirement Requires a USB-C 3.2 Gen 1 / USB4 / Thunderbolt 3/4 port on the host device

Compatible OS

Windows 7 or later

macOS 10.12 or later

Ubuntu LTS 18.04 or later

Android 5 or higher

iPadOS

iOS

Nintendo Switch system software (When the PD-IN port is receiving power)

Driver Installation Driver Free

Reliability Environment

Operating Temperature: 0~40 °C (-32~104 °F)

Storage Temperature: -20~70 °C (-10~158 °F)

Operating Humidity: 20~85% RH non-condensing

Storage Humidity: 10~90% RH non-condensing

Mechanical Product Weight 53 g (1.87 oz.)

Dimension Main Part :

103×32×11 mm

4.06×1.26×0.43 inches

Cable:

250 mm

9.84 inches

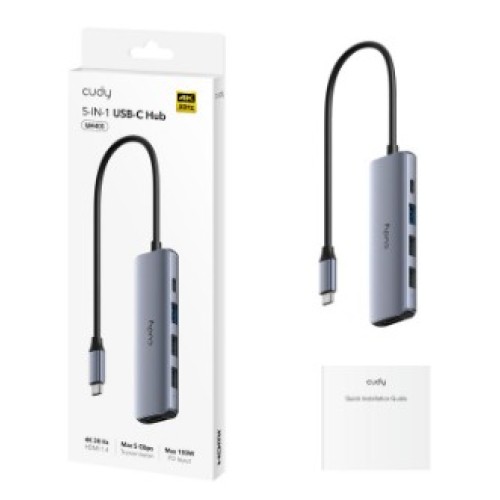

Package Content

UH405

Installation Guide

Ordering Information Retail Package Weight 102.6 g (3.62 oz.)

Retail Package Dimension 90×225×18 mm

3.54×8.86×0.71 inches

Units per Carton 100

Carton Net Weight 10.3 kg (22.71 lbs)

Carton Gross Weight 11.4 kg (25.13 lbs)

Carton Dimension 52×46.5×21 cm

20.47×18.31×8.27 inches
