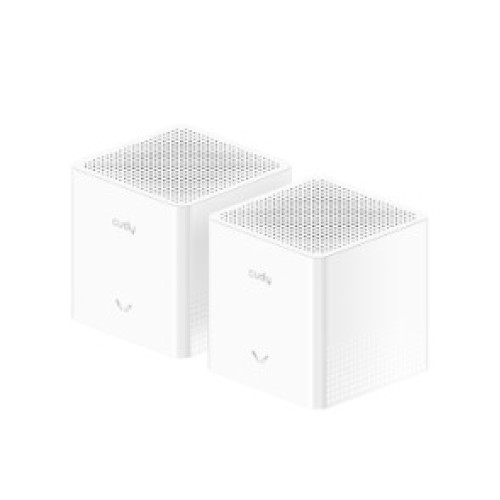

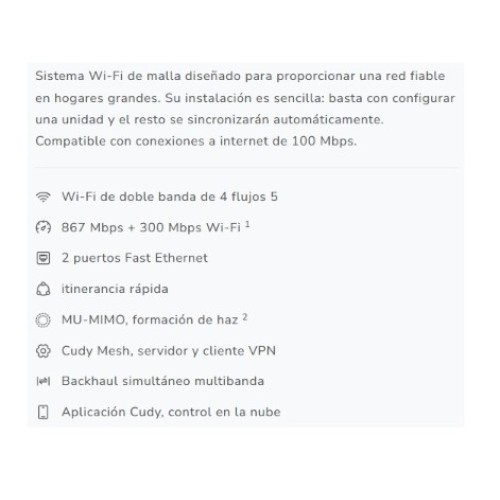

Un sistema WiFi en malla creado para proporcionar una red confiable para hogares grandes. La instalación es fácil: configure una unidad y sincronice automáticamente el resto. Adecuado para acceso a Internet de 100 Mbps.

4-Stream Dual-Band Wi-Fi 5

Wi-Fi de 867 Mbps + 300 Mbps 1

2 × puertos Ethernet rápidos

Itinerancia rápida

MU-MIMO, formación de haces 2

Cudy Mesh, servidor y cliente VPN

Backhaul simultáneo multibanda

Aplicación Cudy, control en la nube

Versión del modelo M1200 1.0

CPU CPU Details 580 MHz Single-Core, MIPS24KEC

Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR

DDR/RAM 128 MB (1 Gbit) DDR3

Wireless 5 GHz Wi-Fi Speed 867 Mbps

2.4 GHz Wi-Fi Speed 300 Mbps

5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)

2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)

Wi-Fi Antennas 2× Internal

5 GHz Antenna Gain Max 3.75 dBi

2.4 GHz Antenna Gain Max 2.35 dBi

FEM or PA/LNA

5 GHz: 2× Internal

2.4 GHz: 2× Internal

Beamforming True

Range Performance Max: 170 m (558 ft)

Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.

Wall Performance Two wooden walls with thickness < 10 cm (4'')

One concrete wall with thickness < 20 cm (7'')

Indoor Coverage Reference 2 Pack: 160 m² (1700 sq ft)

3 Pack: 220 m² (2400 sq ft)

Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of two obstacles to each room.

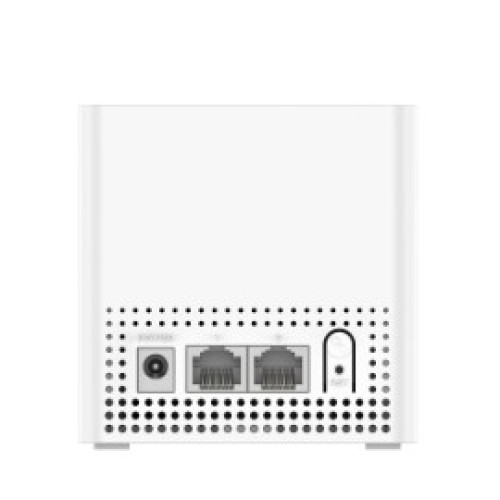

Interfaces 10/100 Mbps RJ45 Ports 2

Ethernet Notes Port 1 is the WAN port by default. All ports are LAN ports in Mesh satellite mode

LED System

Physical Buttons

WPS Button

Reset Button

Power Input DC Jack

Power Power Methods DC

DC Input 12V 1A

Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC

Output: 12V 1A DC

Max Power Consumption (W) 8W

Reliability Environment

Operating Temperature: 0 ? ~ 40 ? (32 ? ~104 ?)

Storage Temperature: -40 ? ~ 70 ? (-40 ? ~ 158 ?)

Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5% ~ 95% non-condensing

Certifications FCC, CE

Mechanical Installation Desktop

Dimension F110×154.5 mm

F4.33×6.08 inches

Product Weight

2-Pack | EU: 586 g (20.67 oz.)

3-Pack | EU: 879 g (31.01 oz.)

1-Pack | EU: 293 g (10.34 oz.)

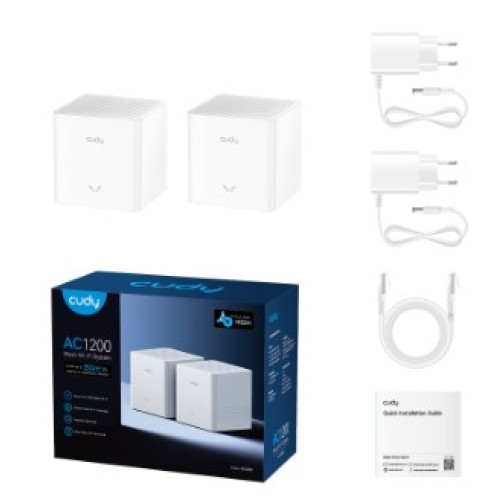

Package Content

M1200

Power Adapter

Ethernet Cable

Installation Guide

Ordering Information Retail Package Weight

2-Pack | EU: 1156 g (40.78 oz.)

3-Pack | EU: 1658 g (58.48 oz.)

1-Pack | EU: 661 g (23.32 oz.)

Retail Package Dimension

1-Pack:

145×130×265 mm

5.71×5.12×10.43 inches

2-Pack:

330×130×265 mm

12.99×5.12×10.43 inches

3-Pack:

380×130×265 mm

14.96×5.12×10.43 inches

Units per Carton

1-Pack: 16

2-Pack: 8

3-Pack: 4

Carton Dimension

1-Pack: 57×56×26 cm

22.44×22.05×10.24 inches

2-Pack: 55×54.5×35.3 cm

21.65×21.46×13.9 inches

3-Pack: 53.6×40×28.7 cm

21.1×15.75×11.3 inches

Carton Gross Weight

2-Pack | EU: 10.8 kg (23.81 lbs)

3-Pack | EU: 7.6 kg (16.76 lbs)

1-Pack | EU: 12.0 kg (26.46 lbs)

Carton Net Weight

2-Pack | EU: 9.4 kg (20.72 lbs)

3-Pack | EU: 6.6 kg (14.55 lbs)

1-Pack | EU: 10.6 kg (23.37 lbs)
