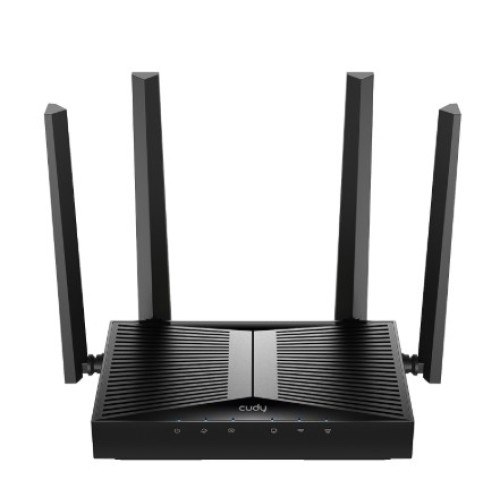

Versión del modelo WR3600H 1.0

CPU CPU Details 2.0 GHz Quad-Core, ARM Cortex-A7

Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND

DDR/RAM 512 MB (4 Gbit) DDR3L

Wireless 5 GHz Wi-Fi Speed 2882 Mbps

2.4 GHz Wi-Fi Speed 688 Mbps

5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)

2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)

Wi-Fi Antennas 4× Fixed

5 GHz Antenna Gain Max 5.5dBi

2.4 GHz Antenna Gain Max 5.4dBi

FEM or PA/LNA

5 GHz: 2× External

2.4 GHz: 2× Internal

Beamforming True

Range Performance Max: 220 m (722 ft)

Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.

Wall Performance Two wooden walls with thickness < 10 cm (4'')

One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')

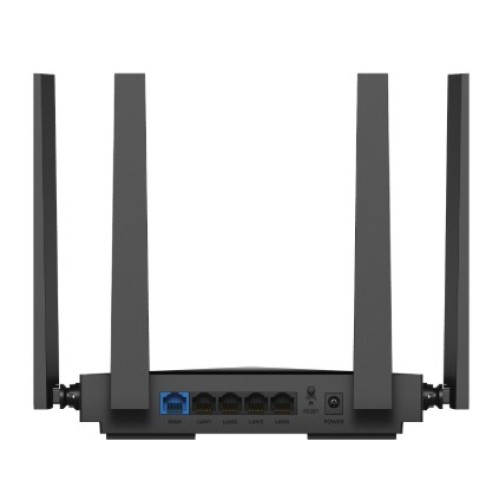

Interfaces 2.5G RJ45 Ports 1

Gigabit RJ45 Ports 4

Ethernet Notes The 2.5G port is WAN port, the Gigabit ports are LAN ports

LED

Power

Internet

WAN

LAN

2.4 GHz Wi-Fi

5 GHz Wi-Fi

Physical Buttons

WPS Button

Reset Button

Power Input DC Jack

Power Power Methods DC

DC Input 12V 1A

Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC

Output: 12V 1A DC

Max Power Consumption (W) 10W

Reliability Environment

Operating Temperature: 0 ? ~ 40 ? (32 ? ~104 ?)

Storage Temperature: -40 ? ~ 70 ? (-40 ? ~ 158 ?)

Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5% ~ 95% non-condensing

Certifications FCC, CE

Mechanical Installation

Desktop

Wall-mount

Dimension Device:

183.3×109×38 mm

7.22×4.29×1.5 inches

Each Antenna:

175 mm

6.89 inches

Product Weight 332.0 g (11.71 oz.)

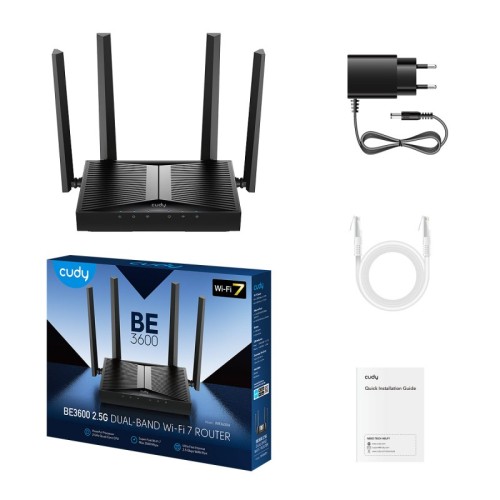

Package Content

WR3600H

Power Adapter

Ethernet Cable

Installation Guide

Ordering Information Retail Package Weight EU: 762.0 g (26.88 oz.)

Retail Package Dimension 330×256×60 mm

12.99×10.08×2.36 inches

Units per Carton 10

Carton Dimension 52.8×31.7×34.7 cm

20.79×12.48×13.66 inches

Carton Gross Weight EU: 8.5 kg (18.74 lbs)

Carton Net Weight EU: 7.6 kg (16.76 lbs)
